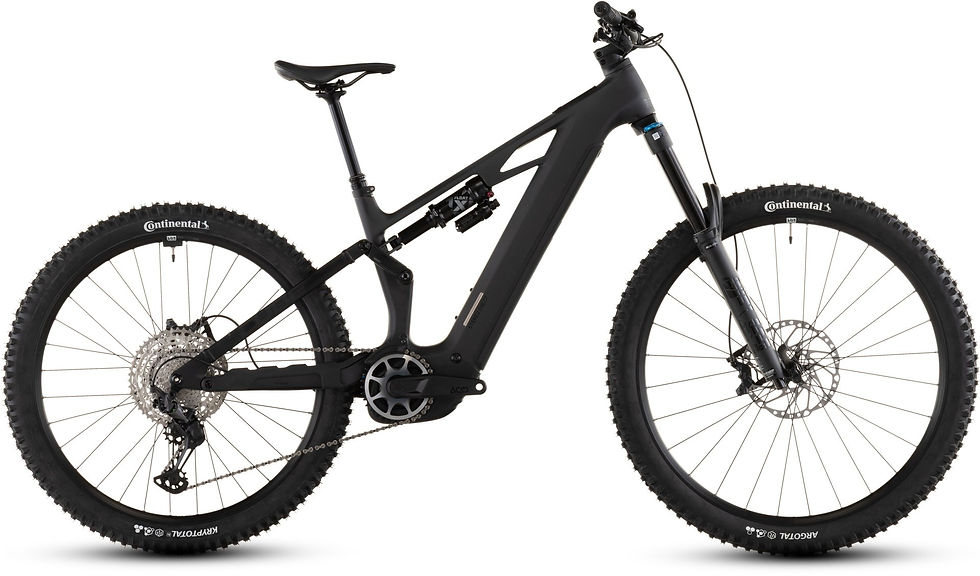

Cube Stereo Hybrid ONE77 HPC SLX
The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.
| Frame |
size: S, M, L, XL frame: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
| Suspension |
shock hardware: Front: 30x8mm, Rear: DU-Bushing 12.7mm shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever Suspension fork: Fox 38 Float Rhythm GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm |
| E-bike system |
charger: Bosch 4A display: Bosch Kiox 400C battery: Bosch PowerTube 800 Remote: Bosch Mini Remote drive unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38) |
| Drivetrain & brakes |
chain guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate chain: KMC e12 cassette: Shimano Deore CS-M6100, 10-51T crankset: ACID MTB Hybrid Pro, 36T shifters: Shimano Deore SL-M6100, Rapidfire-Plus rear derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed brake system: Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
| Cockpit |
grips: ACID Disrupt, Soft Compound handlebar: CUBE Rise Trail Bar 35 Stem: CUBE Performance Stem E-MTB 35, FPI-Link headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Wheels |
rear tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4 front tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4 wheelset: Newmen Performance 30 base/strong, 28/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Finishing kit |
pedals: ACID PP MTB seat post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm saddle: ACID Venec EMTB Trail 140 |
| Product information |
weight: 24,7 kg colour: blackline |
